Product Details

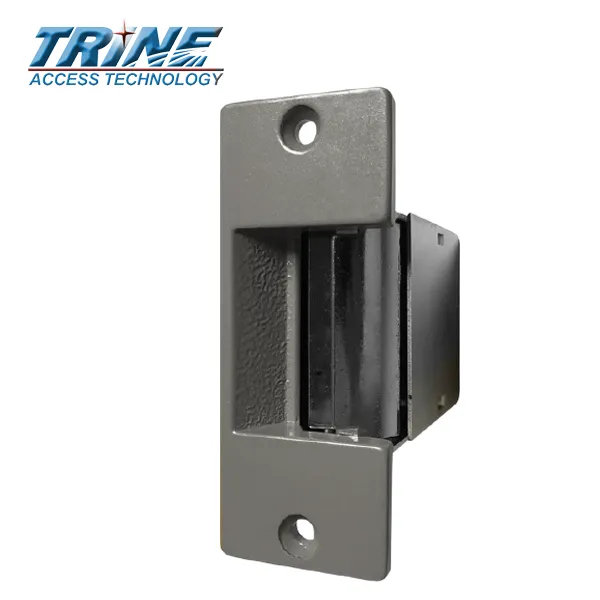

＋For use in replacement installations in wood jambs and iron gates. Use with bored cylindrical locksets having up to 3/4” throw, based on 1/8” door gap.
Face Plate 3-1/2” x 1-3/8” -- Mortise Backset 2-7/8” -- Cavity Depth 5/8” -- Cavity Width 23/32” -- Cavity Height 1-1/2”
00 Series Features
- Durability - 500,000 Life Cycles
- Holding Force - 1000 lbs
- Only 1 Moving Part in Locking Mechanism
- Non Handed Operation
- Heavy Duty Latch Spring
- Fail Secure-Standard Action (Unlocks with Power)
| Voltage | Amps | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 8-16VAC/4-6VDC | 1.3-2.7 | 1.4 | Intermittent | Buzz | Black |
